WICLINE 65 evo/75evo

Bevelled profile contours and overlapping sashes are characteristic of the aluminium window series WICLINE evo in a classic design. This design underlines a style which is often requested for residential architecture. Ideal for new buildings and for renovations alike.

Characteristics

System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016

Air permeability
Water tightness
Resistance to wind load
Acoustic Performance
Operating forces
Load bearing capacity of safety devices
Mechanical strength
Repeated opening / closing
Corrosion resistance of fittings
Burglar resistance
Quality assurance
Environmental management
Class 4
E900
Class C5 / B5
Rw (C; Ctr ) = 47 (–1; –4) dB
Class 1
Fulfilled
Class 4
Class 3 (20 000 cycles)
Class 5
RC1N, RC2N, RC2, RC3
Certified according to ISO 9001:2008
Certified according to ISO 14001

Technical performance

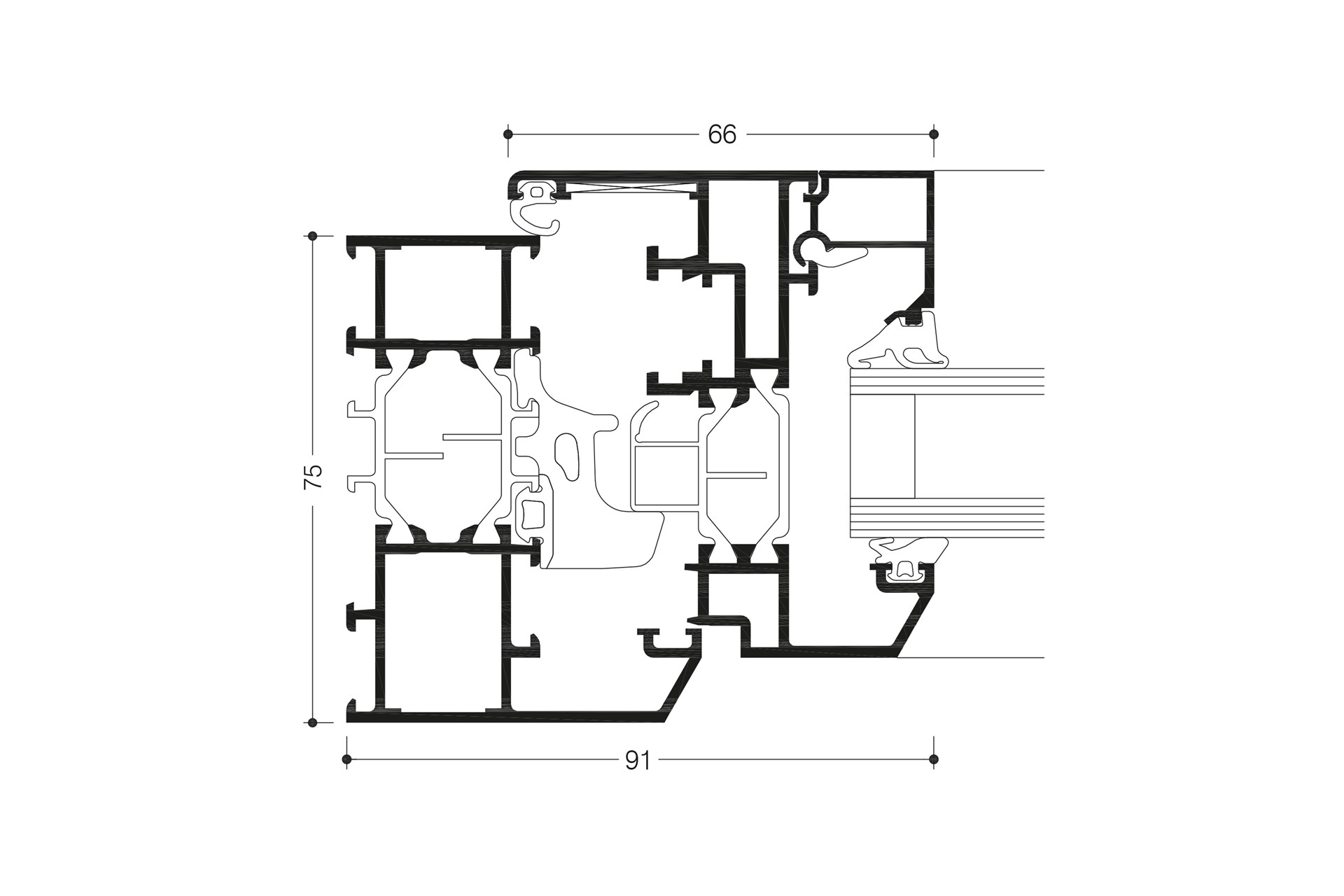

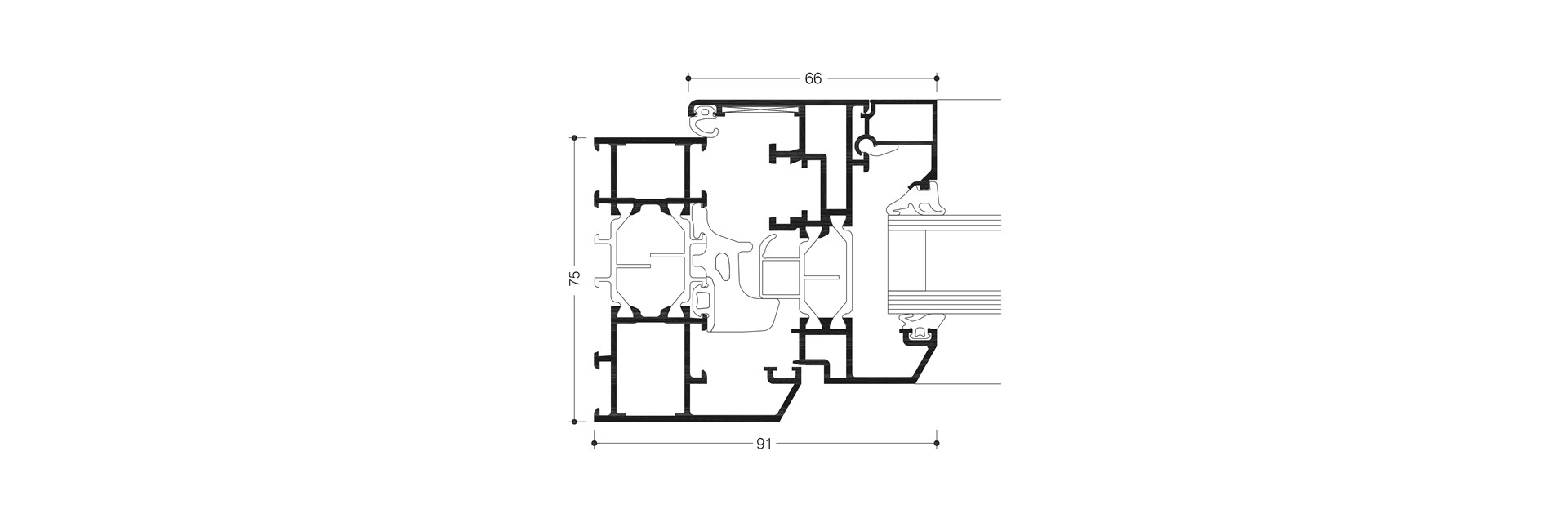

Profile technology

  • High insulation multi-chamber system in symmetric design, quality assured thermal insulator connection, with 30° bevelled glazing rebates
  • Patented corner and butt joint connection technology for high rigidity of frames and sashes
  • Infill thickness up to 59 mm

Thermal insulation

  • Uf values: up to 1.5 W/(m²K)
  • Uw values: up to 0.84 W/(m²K) with triple glazing

Gasket concept

  • Central gasket in three variants:
    • Circumferential installation without corner pieces
    • With formed corners, no adhesive required
    • Corner vulcanised frames

Hardware

  • Heavy duty system hardware with:
    • Visible hinges, powder coating or anodisation in all colours
    • Concealed hinges with integrated end position damping, opening angle max. 105°
  • Sash weight:
    • Visible hinges: up to 100 kg
    • Concealed hinges: up to 100 kg
  • Sash sizes (w x h): 1300 mm x 1700 mm
  • Optionally with opening limiter in various executions

Additional options in classic design

  • Flush sash in classic design
  • Overlapping sash and frame in classic design
  • Fixed glazing
  • Double casement window
  • Crossbar profiles and glazing bars
  • Integration frame for stick façades
  • Fanlight
  • Burglar resistance (see system tests)

Compatible with the door series WICSTYLE 65 evo and WICSTYLE 75 evo in Classic Design
