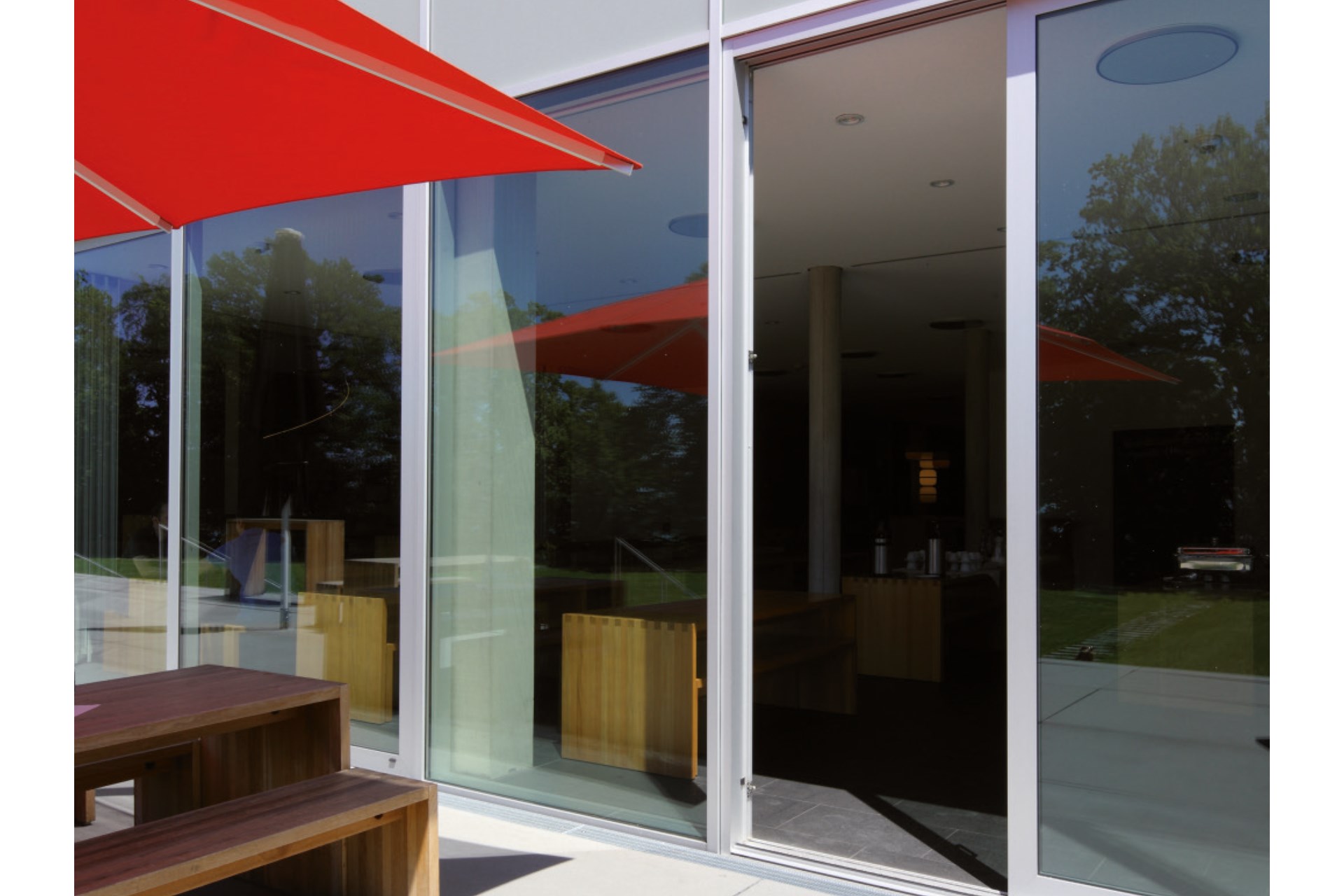

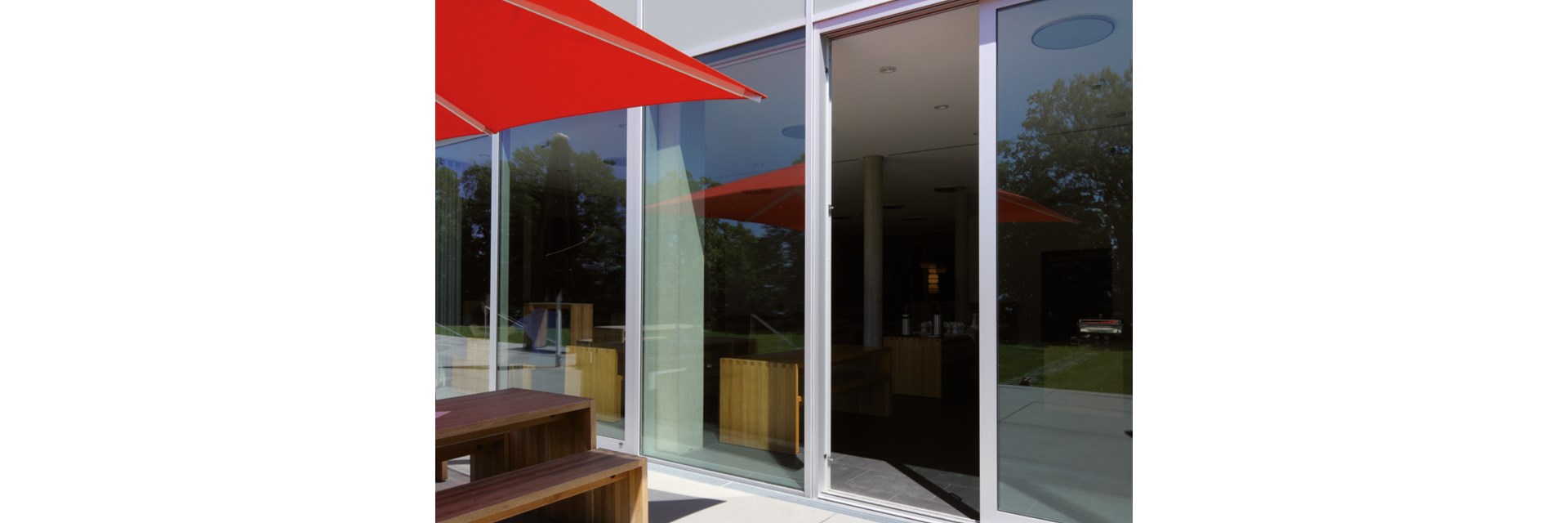

Lifting-sliding system


The WICSLIDE 160 lifting-sliding system combines excellent thermal insulation with the highest functionality and design. Impressive leaf dimensions and enduring operation comfort are your guarantors for maximum customer satisfaction. With state-of-the-art technology and innovative advantages in fabrication, WICSLIDE 160 is a high-tech product that sets new standards.


System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016

Air permeability
Water tightness
Resistance to wind load
Acoustic Performance
Quality assurance
Environmental management
Class 4
Class C3
Rw (C; Ctr) = 43 (–1; –3) dB
Certified according to ISO 9001:2008
Certified according to ISO 14001

Technical performance

Profile technology

  • Improved hooking zone between the leaves for enhanced thermal insulation and tightness
  • Infill thickness from 4 mm to 50 mm
  • Construction depth 160 mm (double track) and 245 mm (triple track)
  • Special frame profiles with multi function zone
  • Barrier free threshold possible
  • Enduring comfort operation due to optimised running carriage technology
  • Hooking zone without visible screws
  • Optional with fixed glazing or fixed sash

Thermal insulation

  • Uw values: below 1.0 W/(m²K)


  • Lifting-sliding hardware, running carriage with integrated brush for permanent cleaning of the tracks
  • Support device in the lowering of the leaf, resulting in reduced operation forces
  • Leaf sizes (w x h): up to 3240 mm x 3400 mm
  • Leaf weight up to 400 kg (lifting sliding)
