WICLINE 65 N

Non insulated aluminium window

This non-insulated aluminium window features no thermal break, making it ideal for internal applications where no thermal performances are required. The WICLINE 65N range can also be used as a motorised ventilation flap and Natural Smoke and Heat Exhaust Ventilation (NSHEV)

WICLINE 65N

The WICLINE 65N aluminium window is ideally suited for buildings without specific thermal requirements. This system can also be used as an NSHEV (Natural Smoke and Heat Exhaust Ventilator).

Documentation

WICLINE 65 N System Data Sheet

(419 KB, pdf)

Characteristics

System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016

Air permeability

Water tightness

Resistance to wind load

Operating forces

Repeated opening / closing

Burglar resistance

Quality assurance

Environmental management

Class 4

Class C5 / B5

Class 1

Class 2 (10 000 cycles)

WK1, WK2

Certified according to ISO 9001:2008

Certified according to ISO 14001

Technical peformance

Profile technology

High quality aluminium profiles, without thermal break
Patented corner and butt joint connection technology for high rigidity of frames and sashes
Infill thickness up to 58 mm

Hardware

Concealed single-handed operated fittings, alternatively with:
- Visible hinges
- Concealed hinges
Sash weight:
- Up to 100 kg
Sash sizes (w x h): 1300 mm x 1700 mm

Additional designs non-insulated

Window-doors / French doors
NSHEV applications
Burglar resistance

Compatible with the door series WICSTYLE 65N non-insulated

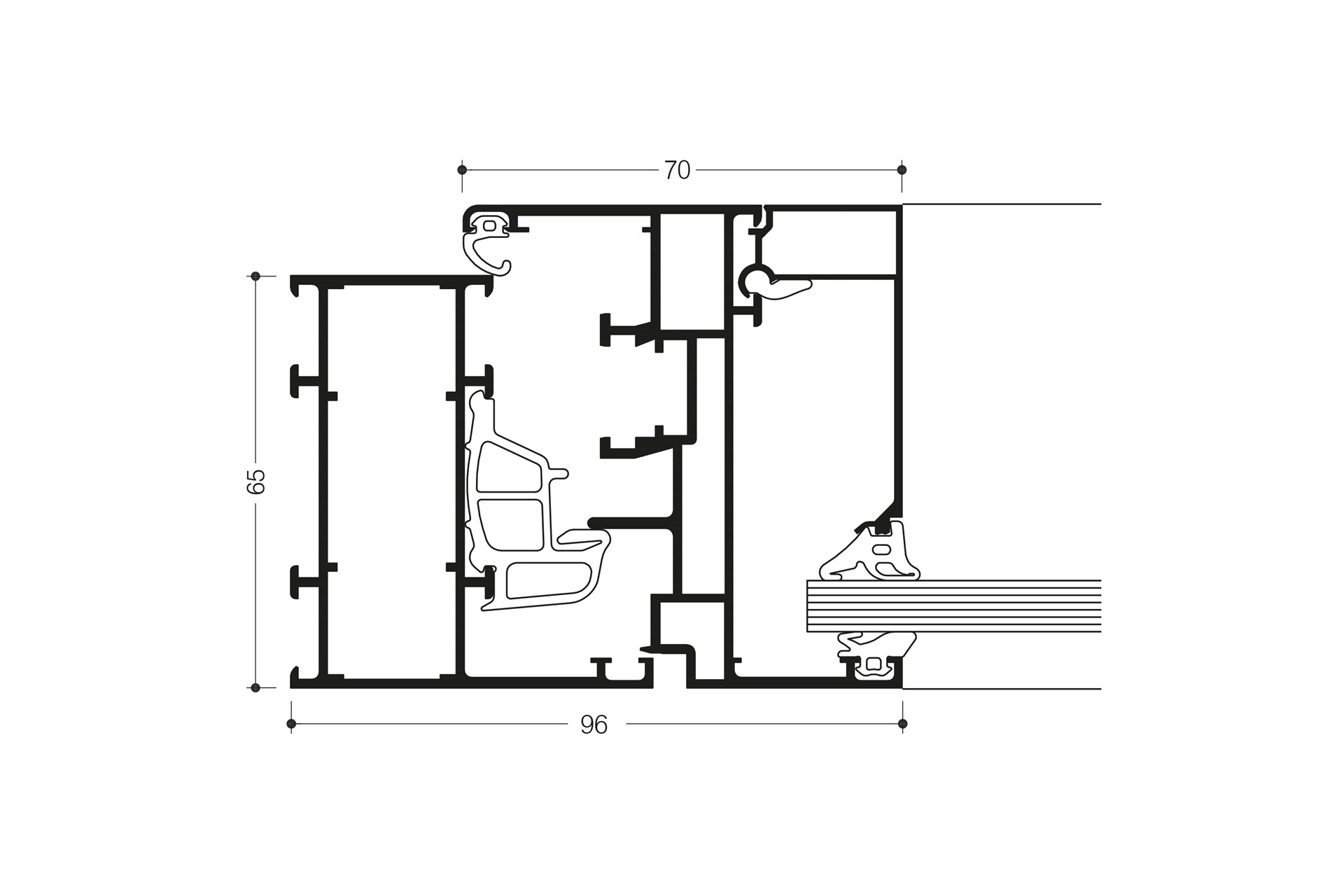

System Overview of the WICLINE 65 N

High-quality aluminium profiles without a thermal break
Patented corner and butt joint connection technology for high rigidity of frames and sashes
Infill thickness up to 58mm
