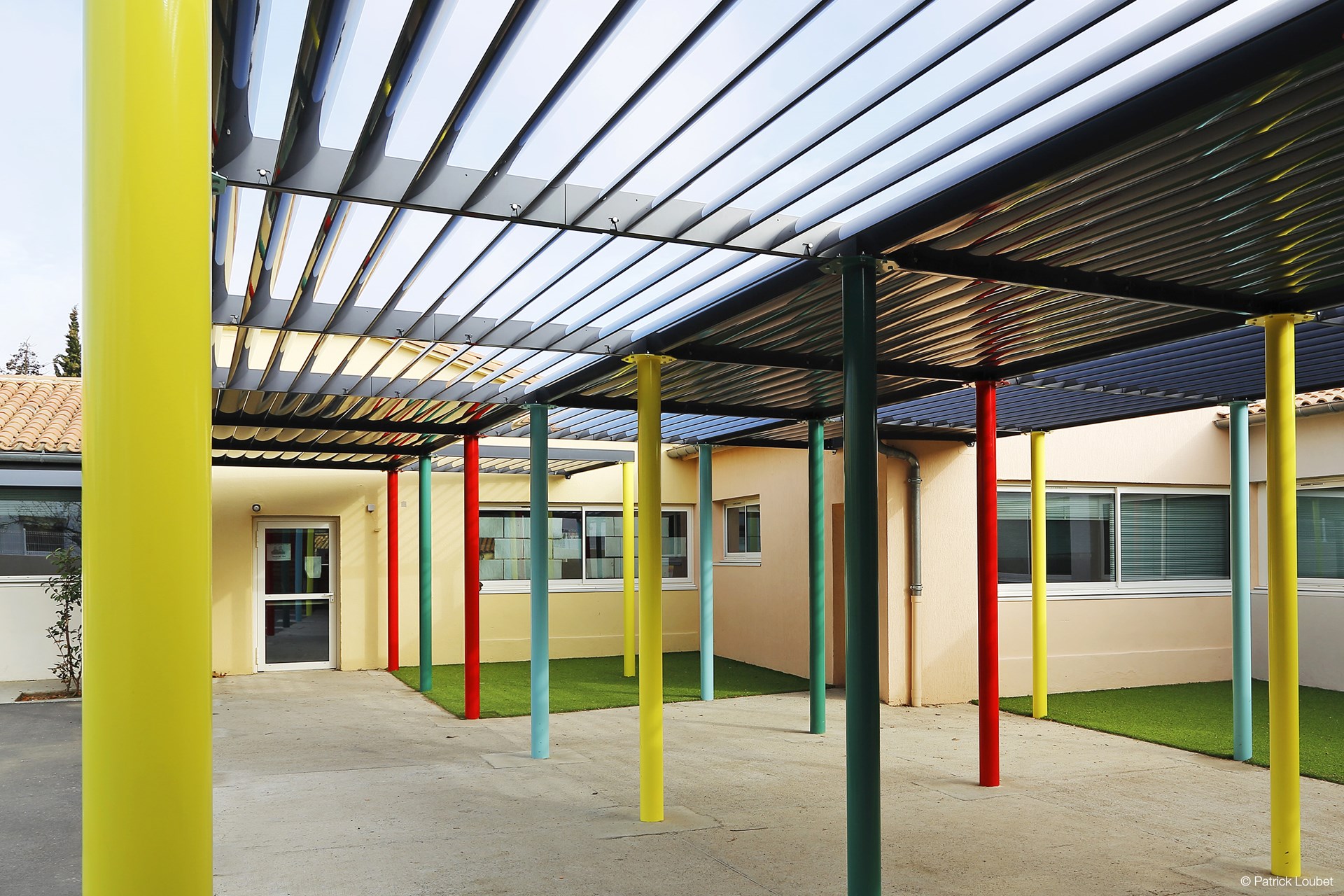

Solar shading system WICSOLAIRE

Aluminium sun protection systems

Controlling natural light into the building

Modern architecture with extended glazing building skins offers increased energy gains from daylight, but this means an external light control is needed to align energy saving and user comfort by directing the flow of light through the interior of the building. WICSOLAIRE is our range of solar shading slats, sliding shutters and aluminum shades from WICONA. By guiding daylight inside the building, our range of solar protection reduces the need for artificial light while controlling solar energy and heat. Heating and air conditioning can thus be avoided, or in any case limited. WICSOLAIRE stands out as a versatile and aesthetic solution, for ever more comfort for occupants while reducing the building's ecological footprint. The visual contact with the exterior remains intact. WICSOLAIRE is a passive technology which can be adapted in diverse options to individual project needs as well as the architectural style of the building. In combination with WICONA aluminium facade and window systems a consistent aesthetic solution is achieved.

TECHNICAL PERFORMANCE

WICSOLAIRE SMALL BLADES

  • Profile Depth - 100mm or 150mm
  • Blade holders for fixture available in 4 angles:
    • 15°
    • 30°
    • 45°
    • 60°
  • Vertical, horizontal or sloped application
  • Blades can be oriented horizontally or vertically
  • Easy assembly due to specialist fixtures for each application

WICSOLAIRE Large Blades

  • Easy adaptations in size, assembly, application and orientation for each project requirement
  • Fixture at angles from 0° to 45°
  • Vertical, horizontal or sloped application
  • Blades can be oriented horizontally or vertically
  • Easy assembly thanks to the special fixtures for each application

WICSOLAIRE with photovoltaic plates

  • Integration of photovoltaic units transform a passive sunshading system into an active solar power station
  • Various angles of orientation in reference to the sun to ensure that a maximum energy efficiency is achieved
  • Blade module size: 185mm x 1200mm
