WICLINE 75 evo
Compatible with the window series WICLINE 75 and façade series WICTEC
Documentation
Characteristics
System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016
Air permeability
Water tightness
Resistance to wind load
Sound insulation
Burglar resistance
Class 4
Class 9A
Class C5 / B5
Until 42 dB
RC1N, RC2N, RC2
Technical performance
Highlights
- Sash widths from 170 to 330 mm, Standard dimensions 180 and 250 mm
- Max. sash sizes (w x h): 180 mm x 3000 mm or 250 mm x 3000 mm
- Fast and economical adjustment of the sash width in the object
- Narrowest possible shadow gap between sash and frame - only 6 mm as in standard WICONA windows
- 3 m sash height including burglar resistance up to RC2
- Simple and efficient processing exclusively with 90° cutting saw or notch cuts
- Comprehensive system testing according to DIN 14351-1 verifies the high quality of the system technology
Thermal insulation
- Uf value up to 1.2 W/(m²K)
Hardware
- High quality system fittings with Direct Positioning System (DPS). Components can be assembled in any order, optionally:
- Surface-mounted hinges, colour coated or anodised
- Concealed hinges with integrated end-position stops
- Sash weights: 80 kg
- Optionally with opening limiter
- Burglar resistance RC1N, RC2N and RC2
Compatible with the window series WICLINE 75 and façade series WICTEC
Concealed motor integration
- 90° opening allowing for maximum ventilation
- Low-maintenance and tamper-proof
- Adjustable opening angle
- Control via ventilation switches, remote control or building management system
- Concealed emergency release
- No motor chains protruding into the opening area

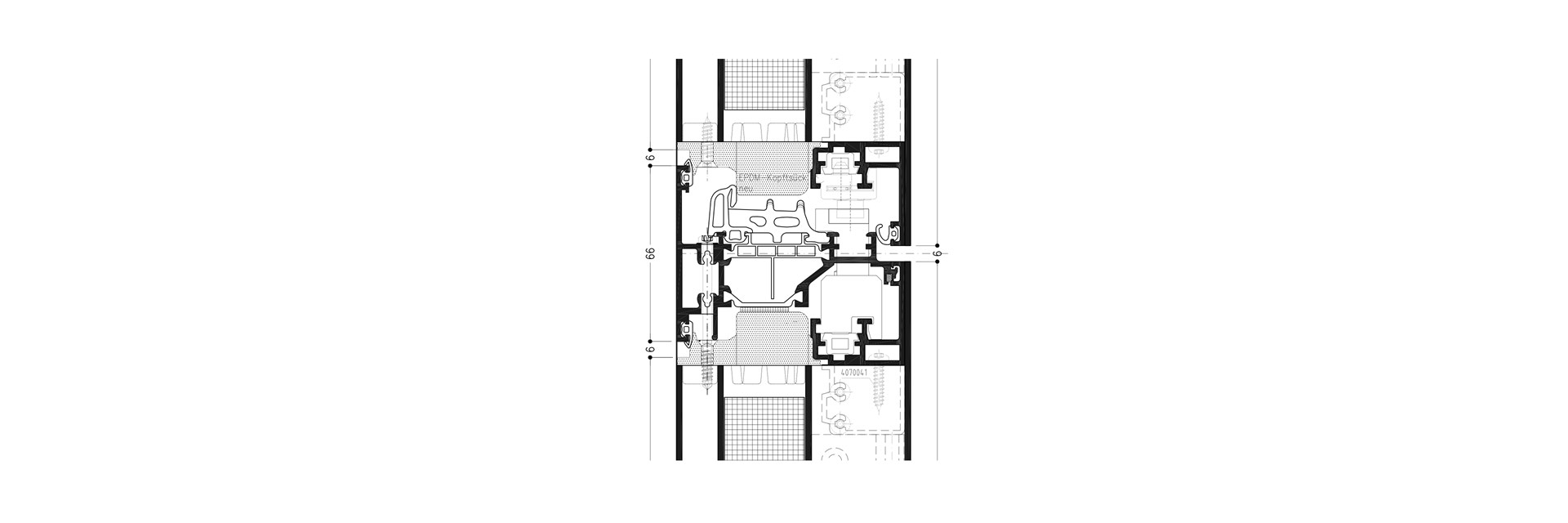

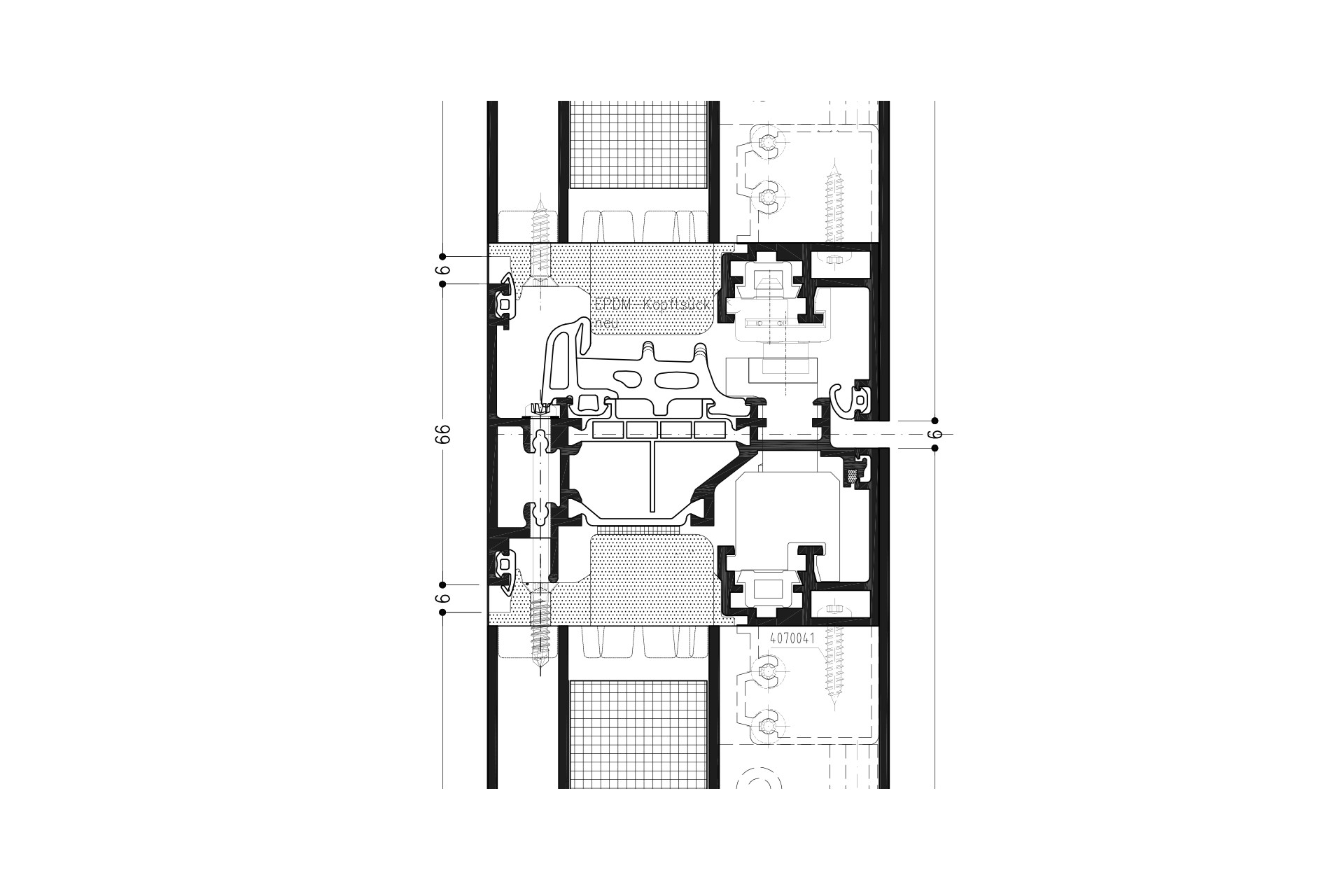

Split ventilation flap
With a thermally insulated unglazed side-hung aluminium vent for integration into stick façades or windows, the WICLINE evo ventilation flap meets the frequent demand for narrow and tall opening units. In addition to a fully motorised version and the conventional manually operated one, there is now a split version of the tried and tested ventilation flap available. The split version has successfully passed watertightness and wind resistance tests.
- New ventilation flap, WICLINE 75evo architectural profile FAB 330 mm, 2-part in horizontal double casement design
- Horizontal two-part side-hung opening vent without fixed central mullion
- New type of opening, patent pending
- Hardware solution based on system fittings, plus newly designed driver set
- Operation via fanlight handle, operation either all opened or only the fanlight being open
- System tests: Air permeability Class 4, Watertightness 9A,
Wind resistance C5 - Pendulum test (safety barrier function),
Burglar resistance (up to RC3) in preparation
Please contact us for further information.
