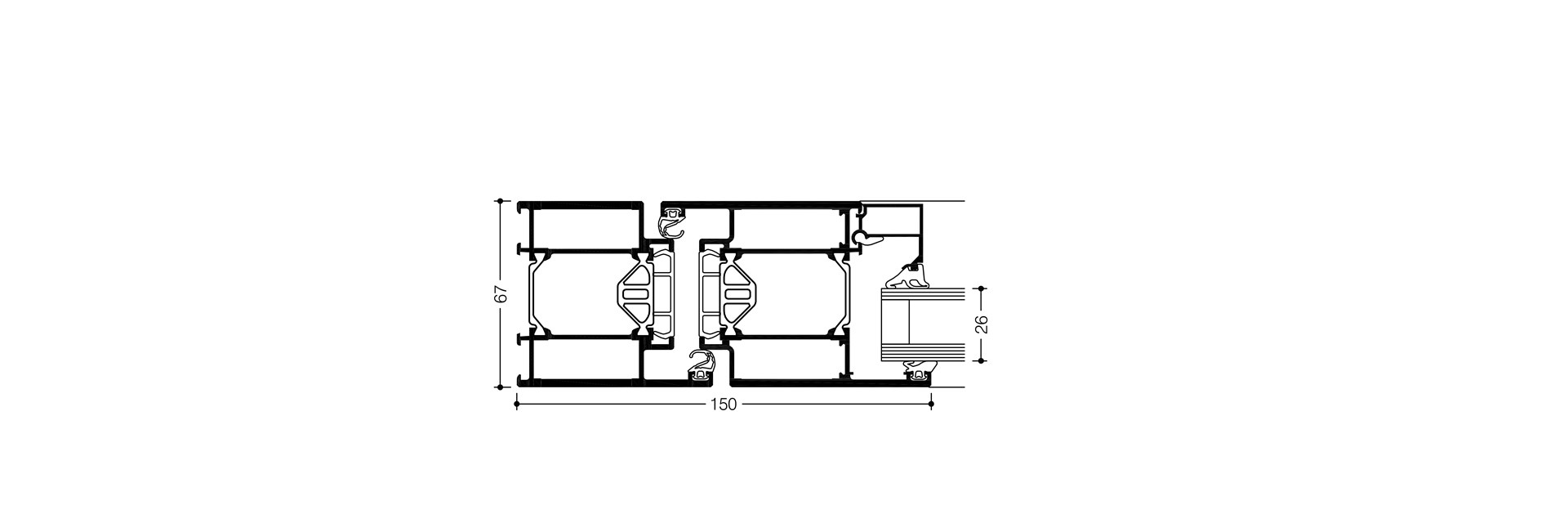

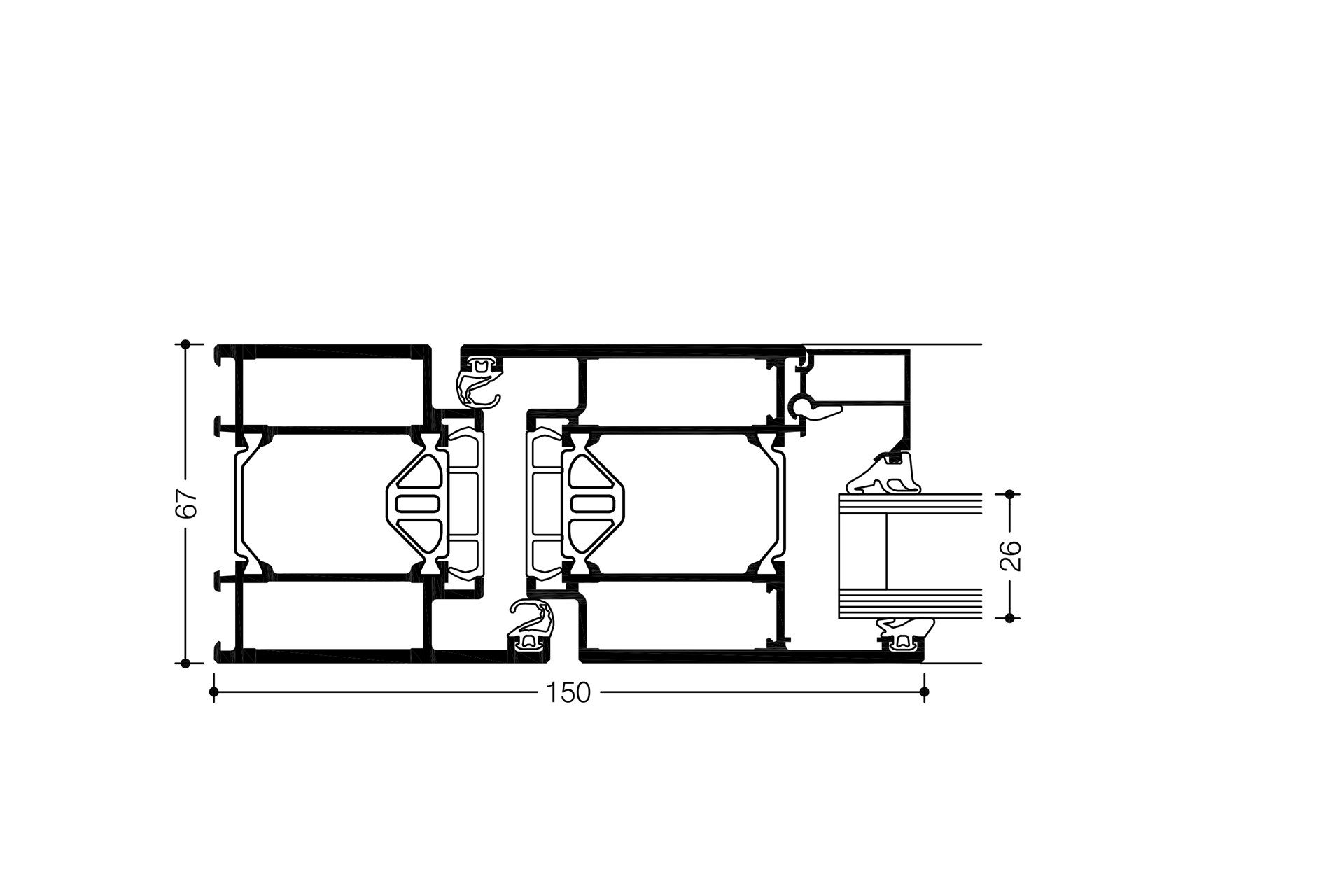

WICSTYLE 65
The solution for high-traffic areas is based on the successful concept of the WICSTYLE evo doors, with a 67 mm profile, and is fully compatible with other solutions for ease of fabrication. The equipment and tools for manufacture remain the same.
The WICTYLE 65 reinforced door for high-traffic areas is also fully compatible with WICTEC façade systems and WICLINE window systems.
Characteristics
System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016
Air permeability
Water tightness
Resistance to wind load
Acoustic Performance
Impact resistance
Mechanical strength
Continuous operation
Load bearing capacity of safety devices
Operating forces
Class 4
Class 7A
Class C2
Rw (C; Ctr) = 43 (–2; –5) dB
Class 3
Class 3
Class 8 (1 000 000 cycles)
Fullfilled
Class 2
Technical performance
Profile technology
- Reinforced, thermally insulated multi-chamber system
- Inwards or outwards opening
- Single- or double-leaf
- Infill thicknesses: 3 mm to 50 mm
- Tight, accessible threshold
- Locks on ABS supports
Thermal insulation
- Ud = 1.7 W/(m²K) with Ug = 1.1 W/(m²K)
Hardware
- Rolled strip:
- Maximum weight 2 strips: 130 kg
- Maximum weight 3 strips: 150 kg
- Max. leaf sizes (w x h): 1500 mm x 2600 mm
