WICLINE 65 evo/75 evo

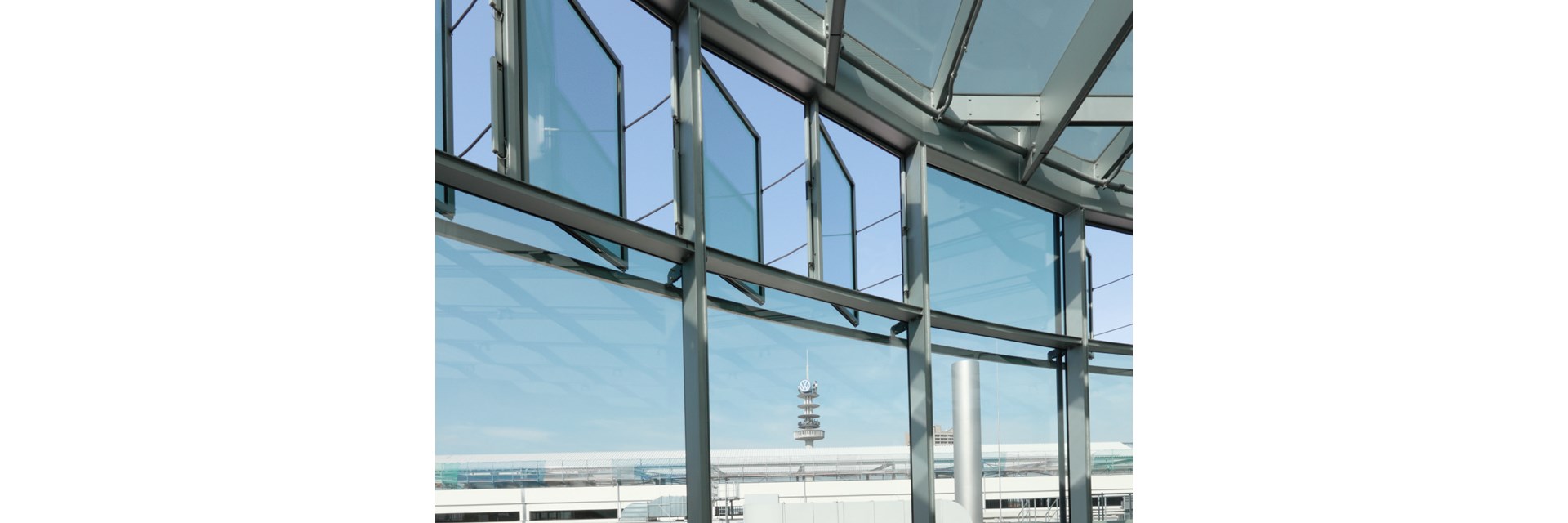

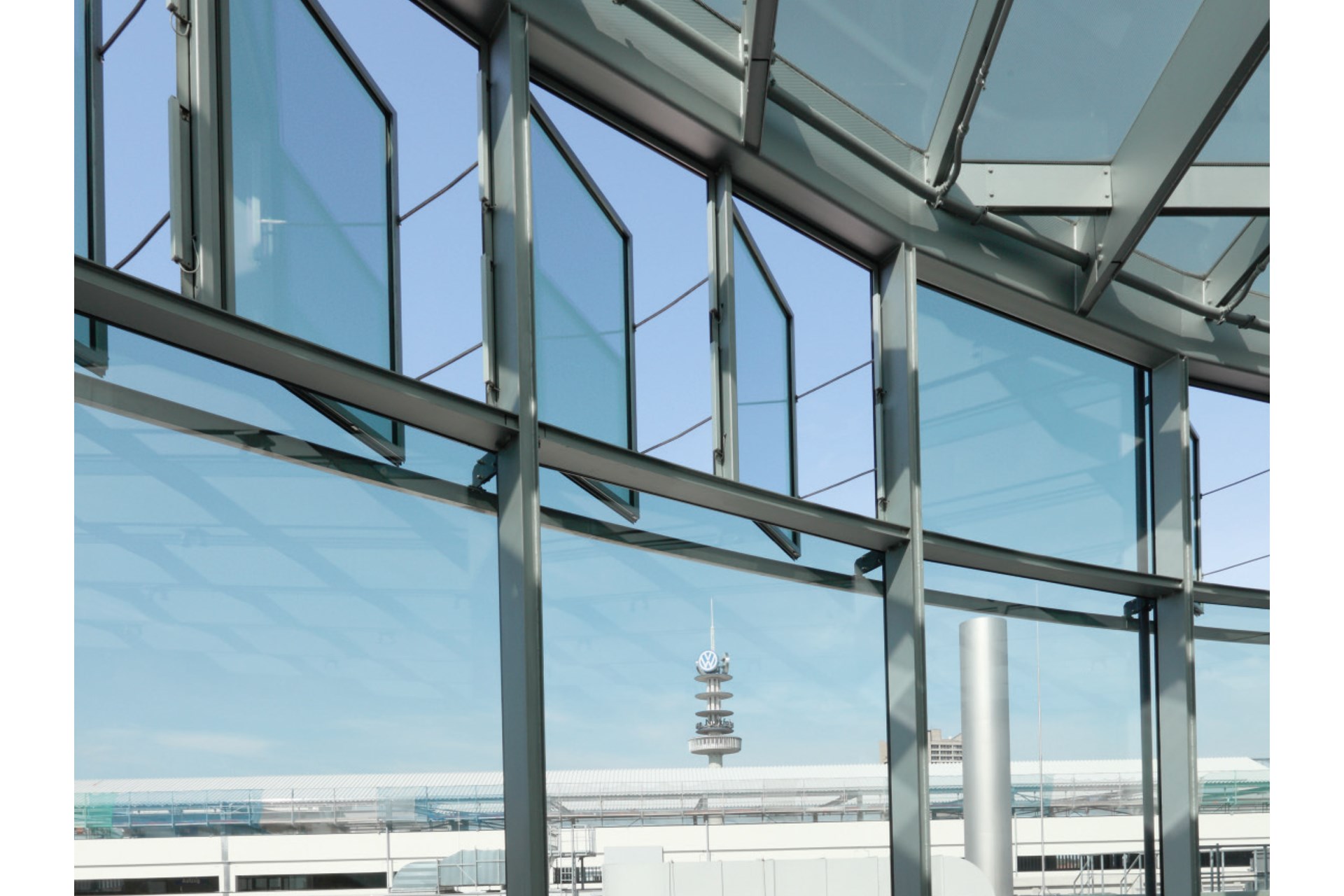

A sash opening towards the outside offers advantages like effective ventilation, the choice between manual and motorised operation, and saves space as the window does not open inwards. With large sash dimensions available and optimised functionality, WICLINE evo top-hung or side-hung with outward opening offers an interesting alternative opening type for architecture. This product is certified to: PAS 24:2016 enhanced security performance requirements for doorsets and windows in the UK. Doorsets and windows intended to offer a level of security suitable for dwellings and other buildings exposed to comparable riskBSI Kitemark KM 90215 & BM Trada Q Mark 044 refers


System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016

Air permeability
Water tightness
Resistance to wind load
Operating forces
Load bearing capacity of safety devices
Mechanical strength
Repeated opening / closing
Impact resistance
Quality assurance
Environmental management
Class 4
Class C5 / B5
Class 1
Class 4
Class 2 (10 000 cycles)
Class 3
Certified according to ISO 9001:2008
Certified according to ISO 14001

Technical performance

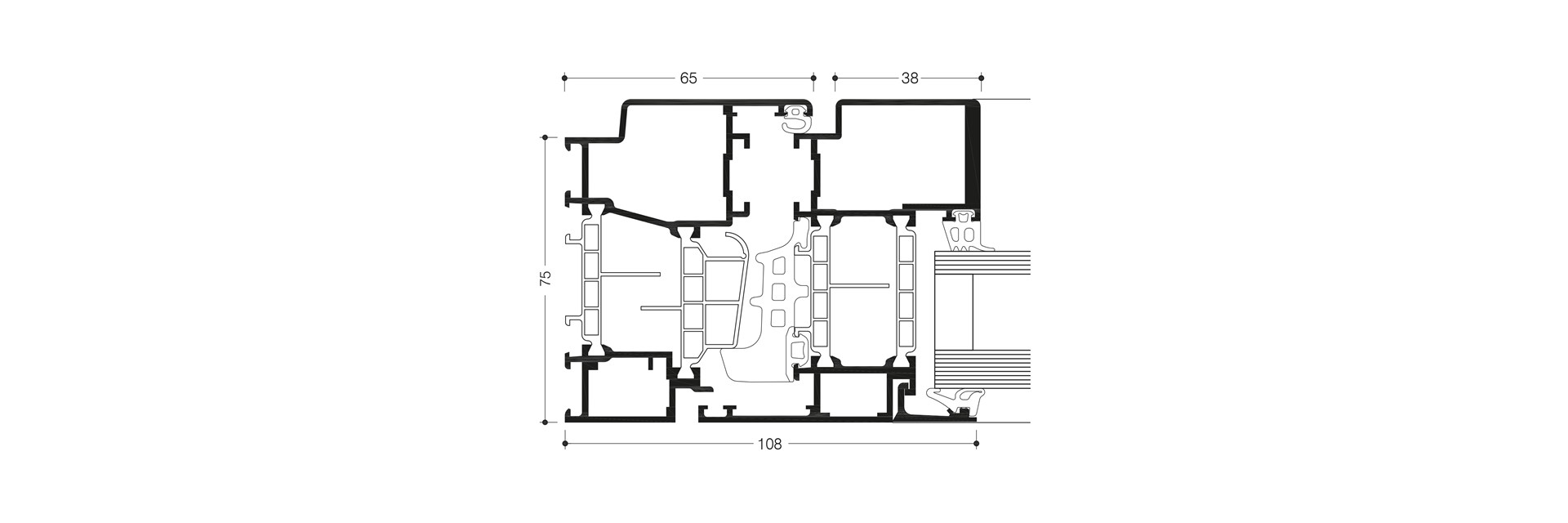

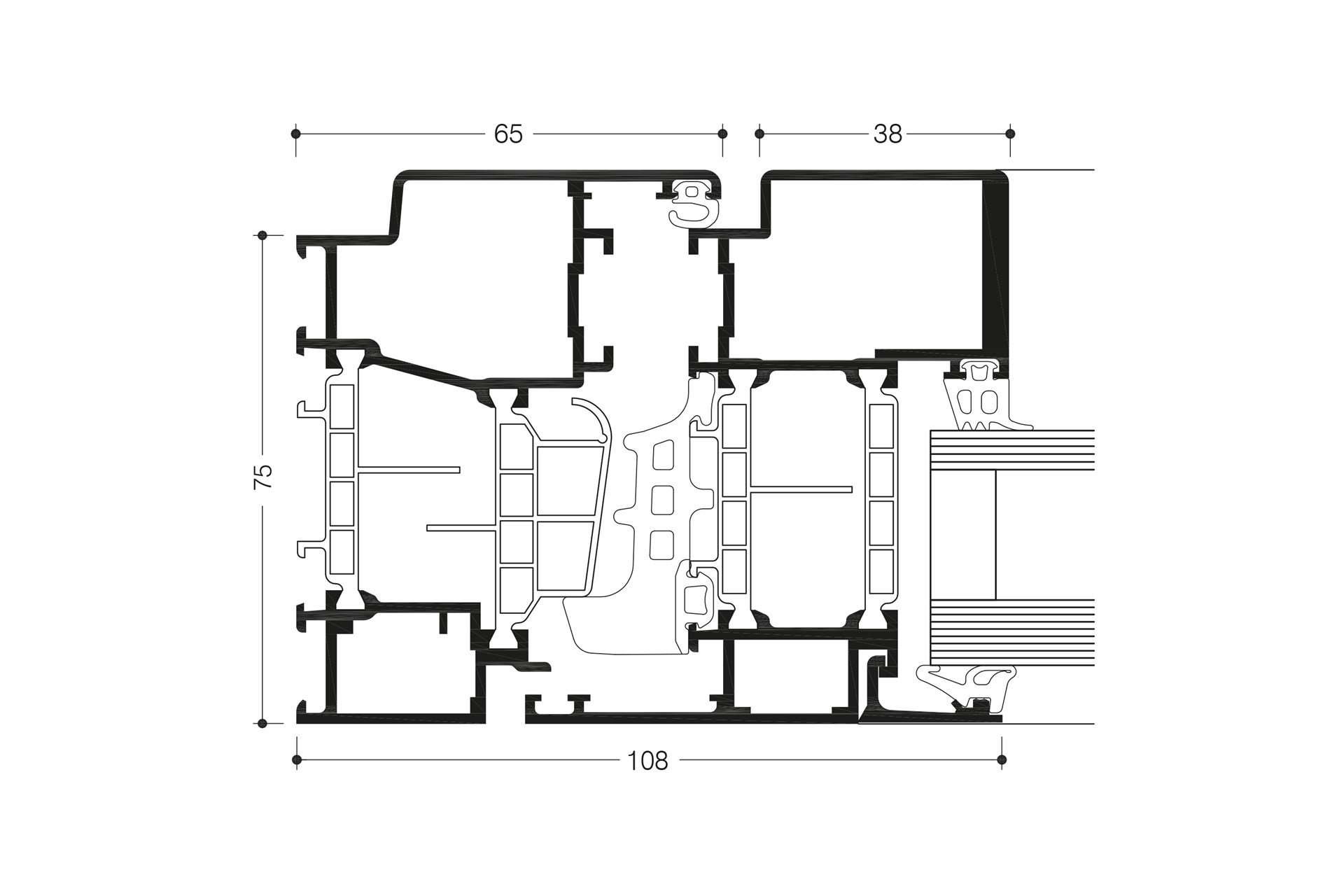

Profile technology

  • High insulation multi-chamber system in symmetric design, quality assured thermal insulator connection
  • Patented corner and butt joint connection technology for high rigidity of frames and sashes
  • Infill thickness up to 69 mm
  • Uf values up to 1.5 W/(m²K)
  • Uw values up to 0.94 W/(m²K)

Gasket concept

  • Centre gasket for superior tightness and improved thermal insulation


  • Externally applied turn hinges, either with
    • top fixation for top-hung opening
    • lateral fixation for side-hung opening
  • Operation either manual or motorised
  • Sash weight up to 150 kg
  • Sash sizes (w x h): up to 2000 mm x 2000 mm
