WICLINE 65 evo

The WICLINE 65 evo range is inspired by the standard WICLINE range and brings improvements to each of its characteristics. WICLINE 65 evo aluminium windows ofdfer a structure of just 65mm deep with many benefits - financially, technological and environmental. This 65mm aluminium window stands out as a versatile model and is suitable for multiple fields of application. Thanks to a modular approach, WICLINE 65 evo meets many of the needs of architects and fabricators alike. This product range also complies with strict standards to ensure technical performance both thermally and acoustically. The WICLINE 65 evo aluminium window range offers hidden or visible hardware depending on project and construction needs. The first ensure pure aesthetics, the second allows exceptional performance.

Characteristics

System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016

Air permeability
Water tightness
Resistance to wind load
Acoustic Performance
Operating forces
Load bearing capacity of safety devices
Mechanical strength
Repeated opening / closing
Corrosion resistance of fittings
Burglar resistance
Bullet resistance
Quality assurance
Environmental management
Class 4
E900
Class C5 / B5
Rw (C; Ctr) = 47 (–1; –4) dB
Class 1
Fulfilled
Class 4
Class 3 (20 000 cycles)
Class 5
RC1N, RC2N, RC2, RC3
FB4 S, FB4 NS (depending on the profile combination)
Certified according to ISO 9001:2008
Certified according to ISO 14001

Technical performance

Profile technology

  • High insulation multi-chamber system in symmetric design, quality assured thermal insulator connection
  • Patented corner and butt joint connection technology for high rigidity of frames and sashes
  • Infill thickness up to 59 mm

Thermal insulation

  • Uf values: up to 1.4 W/(m²K)
  • Uw values: up to 0.93 W/(m²K) with triple glazing

Gasket concept

  • Central gasket in three variants:
    • Circumferential installation without corner pieces
    • With formed corners, no adhesive required
    • Corner vulcanised frames

Hardware

  • Heavy duty system hardware with:
    • Visible hinges, powder coating or anodisation in all colours
    • Concealed hinges with integrated end position damping, opening angle max. 105°
  • Sash weight:
    • Concealed hinges: up to 160 kg
    • Visible hinges: up to 200 kg
    • On demand: up to 300 kg
  • Sash sizes (w x h): 1700 mm x 2500 mm, fanlight 2500 mm x 1700 mm
  • Optional opening limiter

Additional designs

Additional designs

  • Concealed sash
  • Classic design
  • Integration frame for stick façades
  • Fanlight with hand lever, cranked rod or motor
  • Pivot window, horizontal or vertical
  • Parallel sliding window, with or without force operation
  • Italian style window
  • Top-hung window
  • Window doors with barrier free threshold, single or double casement door, inward and outward opening

Compatible with the door series WICSTYLE 65 evo and WICSTYLE 75 evo

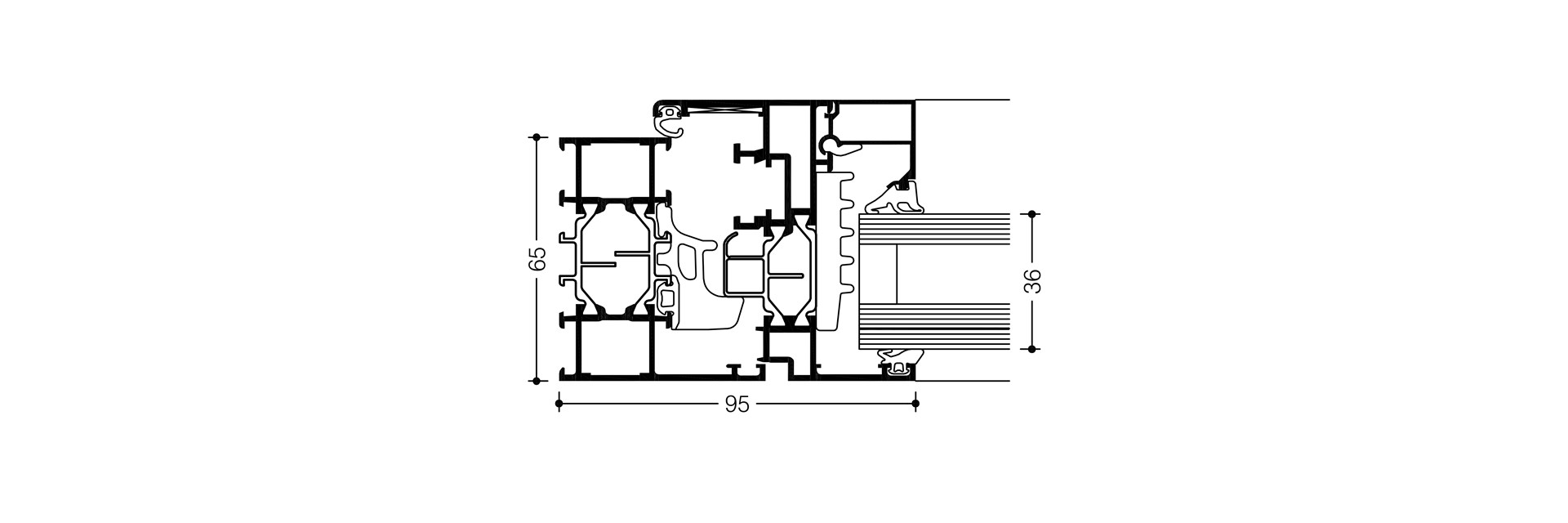

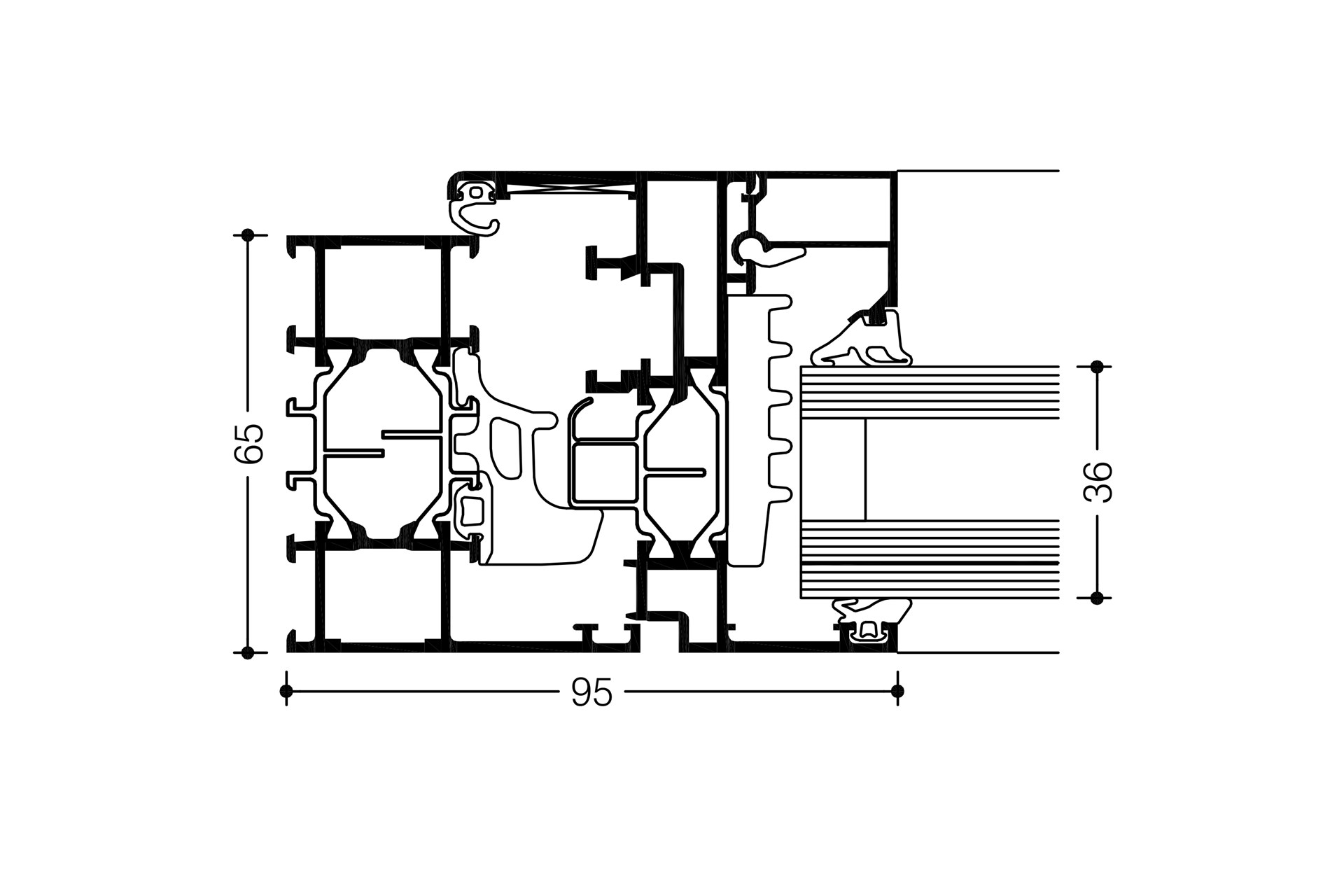

System Overview of the WICLINE 65 evo

  • High insulation, multi-chamber system in symmetric design with a quality assured thermal insulator connector
  • Patented corner and butt joint connection technology for high rigidity of frames and sashes
  • Infill thickness up to 59mm
  • Central gasket in three variants:
    • Circumferential installation without corner pieces
    • With formed corners, no adhesive requires
    • Corner vulcanised frames

Additional design options for the WICLINE 65 evo

  • Concealed sash
  • Classic design
  • Integration frame for stick system facades
  • Fanlight with cranked rod, hand lever or motor
  • Parallel sliding window, with or without force operation
  • Italian style window
  • Top-hung window
  • Window doors with barrier free threshold
