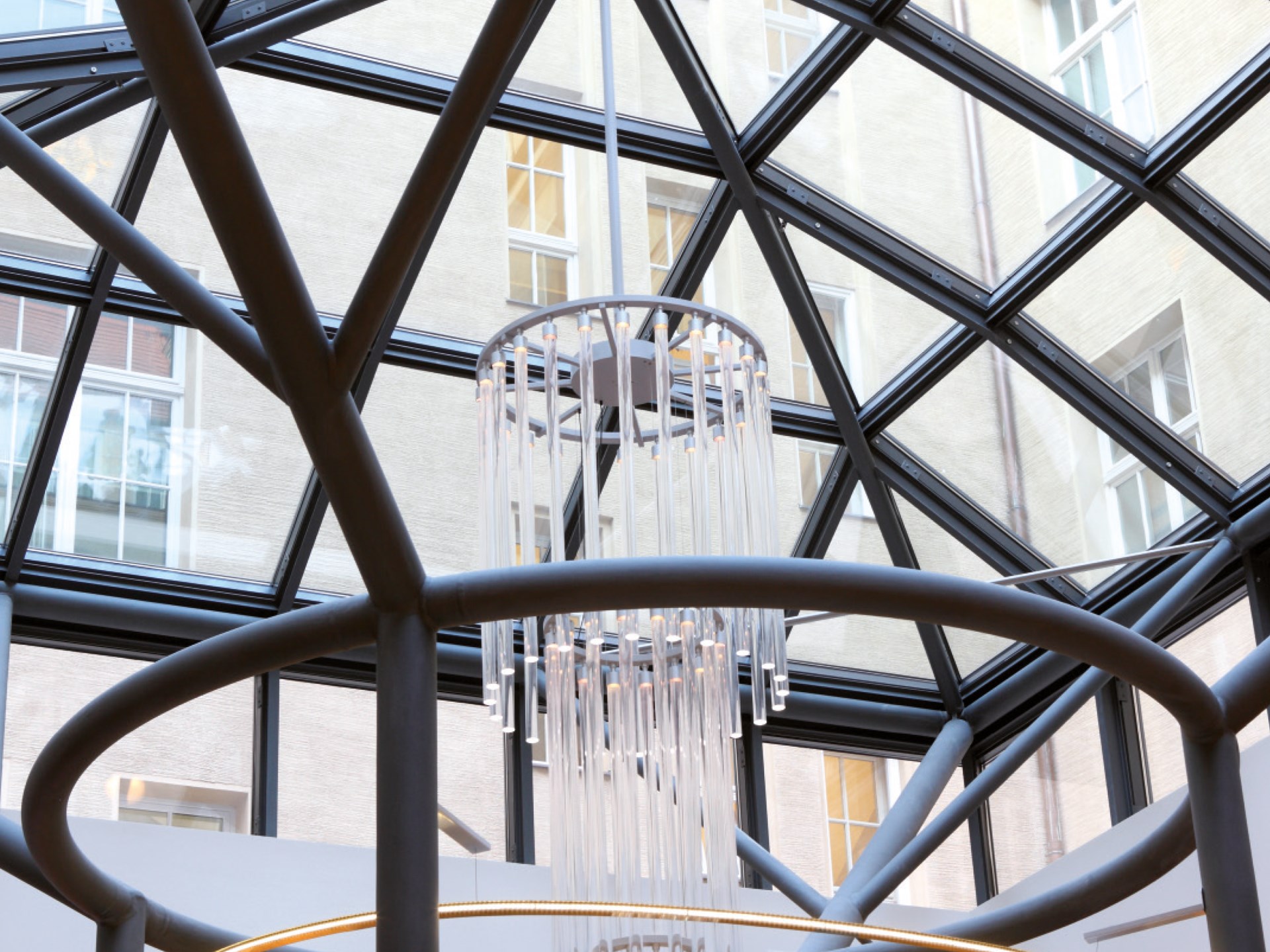

WICTEC 60
具有室内外可视面为60mm特性的WICTEC60框架幕墙系统可满足建筑的最高要求。与此同时，WICTEC60满足醉倒等级要求的防盗，防弹，防火性能。
Documentation
Characteristics
System test results / CE product pass in accordance with DIN EN 13830
Air permeability
Water tightness
Resistance to wind load
Sound insulation
Impact resistance
Burglar resistance
Bullet resistance
Quality assurance
Environmental management
Class AE
RE 1200
2000 / –3200 Pa, security 3000 / –4800 Pa
Rw (C;Ctr) = 47 (–1; –4) dB
Class E5 / I5
RC1N, RC2N, RC2, RC3
FB4
Certified according to ISO 9001:2008
Certified according to ISO 14001
Technical performance
System width
Profile depth
Thermal insulation
Infill thickness
Glass weight
Roof pitch
60 mm
70 mm to 170 mm
Uf value up to 1.2 W/(m²K)
3 mm to 51 mm
up to 4.0 kN
up to 10°
System technology
- Ideal for vertical and sloped glazing
- Individual design possibilities, thanks to a wide range of aesthetic profiles
- Reliable glass load transfer (up to 4.0 kN), with improved transom-joint technology
- Overlapping and secure drainage at the cruciform, without mechanical mullion processing, ensures tried-and-tested impermeability
- Consistent internal gasket appearance
- High static value profiles, with optional integral reinforcements, ensuring optimal performance
- External glazing, with visible or concealed fixings
- Extensive solutions for framework junctions
Additional options in identical design and technical set-up
- Integrated sun protection
- Fire protection curtain wall
